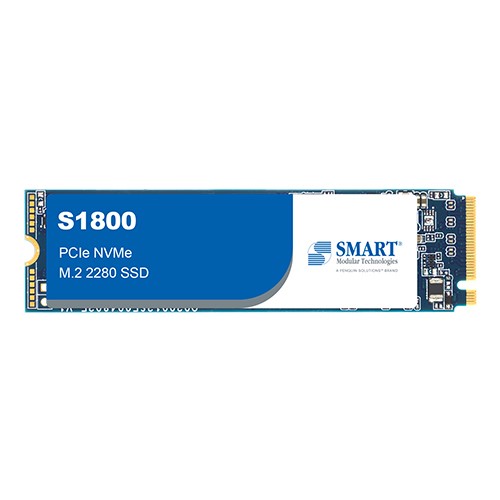

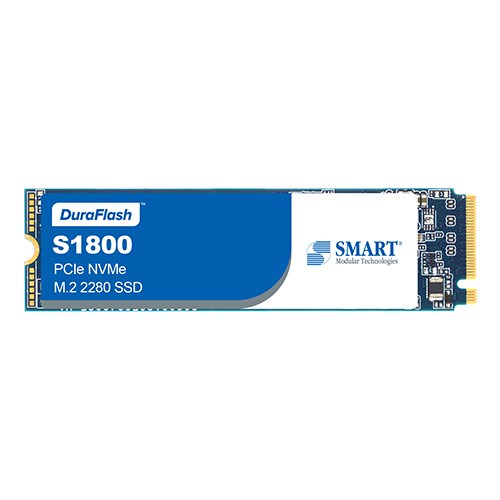

S1800 | PCIe NVMe | M.2 2280 SSD

NVMe

SMART’s S1800 PCIe NVMe M.2 2280 products are robust SSDs with PCIe Gen3 x4 interface. These drives target server, storage cache/accelerators, networking, and data communications applications requiring reliable internal storage with a small footprint. They are also a natural fit for enterprise applications, including computing, medical, automotive, and industrial applications.

Utilizing PCIe Base 3.1 interface and compliant to NVMe v1.3 specification, S1800 PCIe NVMe M.2 2280 modules are easily integrated into a host system without any special BIOS modifications or additional device drivers. These products offer sustained read performance up to 3200 MB/s and burst write performance of up to 1000 MB/s.

The S1800 PCIe NVMe M.2 2280 products address the need for enhanced reliability by incorporating on-board error detection and correction, and static Wear-Leveling algorithms to provide reliable operation over the product life cycle.

Essentials
S1800
3D TLC
PCIe Gen3 x4 NVMe 1.3
Performance
Up to 3300MB/s
Up to 1000MB/s
Up to 140K IOPS
Up to 220K IOPS
960GB
1920GB
Reliability
960GB: 595TBW
1920GB: 1210TBW
(JEDEC® Client Workload)
> 2,000,000 hours
0.3
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
80mm
22mm
3.5mm
SVM2P8B1920STD11920GBC-Temp (0˚C to +70˚C)
SVM2P8B960GSTD1960GBC-Temp (0˚C to +70˚C)
