MP3000 PCIe NVMe SSDs

SMART’s DuraFlash MP3000 PCIe NVMe SSDs incorporate the latest generation 3D NAND-technology to deliver high performance with endurance up to one drive writes per day (1 DWPD) for five years. The MP3000 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability. The MP3000 SSDs feature a PCIe Gen4 x4 interface and are compliant to NVMe 1.4 specification. The increased bandwidth offered by PCIe 4.0 improves the efficiency of performing workloads.

NVMSentry™ Firmware for Customization Support

NVMSentry provides the full package of advanced firmware features for specific customization requirements and optimized product performance. Incorporating SMART’s proprietary NVMSentry firmware along with a best-in-class SSD controller, the MP3000 PCIe NVMe SSDs offer exceptional performance while providing the flexibility and optionality for mission critical applications.

SafeDATA™ Power Loss Data Protection Technology

SMART’s MP3000 PCIe NVMe SSDs are equipped with SafeDATA™ technology, which adds another layer of protection for data. SafeDATA technology is a robust system of hardware and firmware that have SMART SSDs operate safely during any events of unexpected power loss. It guarantees the end-to-end data integrity and prevents drive corruption due to the loss of critical data during the unexpected shut down.

AES 256 Encryption for Data Security

The MP3000 PCIe NVMe SSDs come with AES 256 encryption for data security and data sanitization. AES is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

1 DWPD (Drive Writes Per Day)

SMART’s MP3000 PCIe NVMe SSDs deliver high performance with endurance up to 1 DWPD for five years. DWPD allows users to calculate the number of times the drive can be written per day over the warranty period, based upon the JEDEC enterprise workload used to specify the TBW.

SHARED FEATURES:

● Self-Encrypted Drive (SED) with TCG Opal 2.01 Support

● Quality of Service (QoS) with 3 Nines of Latency Consistency

● Secure Boot with PKI-Based Firmware Authenticity Verification

● The Latest Generation 3D NAND Technology

● PCIe Gen4 x4 NVMe 1.4 Compliant

● 1 DWPD For 5 Years, Enterprise Workload

● Namespace Management (Up to 16 Namespaces)

● 512-Bytes and 4096-Bytes LBA Formats

● SMBus NVMe-MI Support

● SafeDATA™ Power-Loss, Data-Protection Technology

● Redundancy Coding for Enhanced Data Reliability

● End-to-End Data Path Protection with Internal Memory Error Detection and Correction

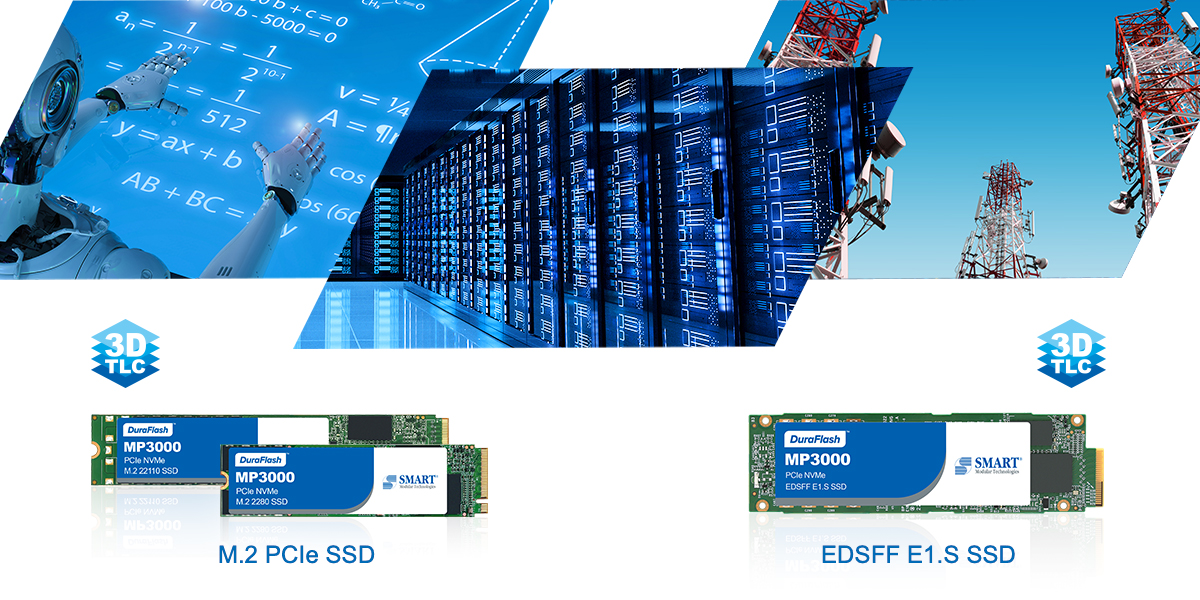

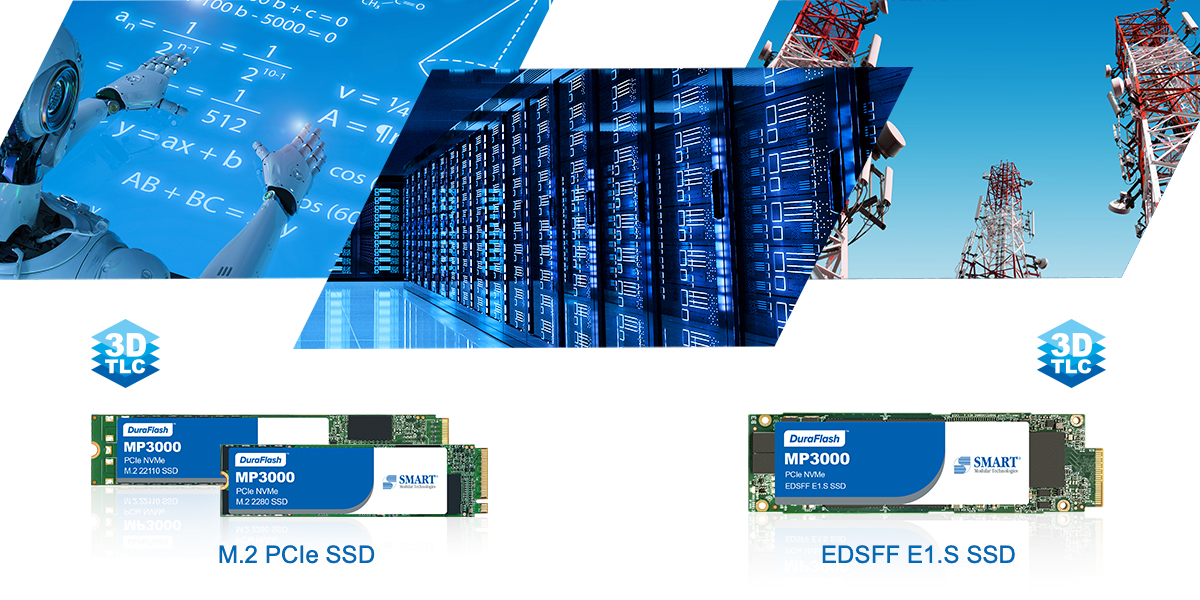

EDSFF E1.S SSD ONLY:

● E1.S 5.9mm 12W Form Factor (31.5mm x 111.49mm x 5.9mm)

● Fits in Common Datacenter System Chassis (1U, 2U, etc.)

● Designed to be Front Panel Accessible

● Up to 32 EDSFF SSDs in a 1U Server (up to 256TB Total Capacity)

● Cost Benefit to System Designs with 12V Only for Main Power

● Full Range of NVMe Command Sets Available

● Supports Hot-Plug Insertion and Removal
