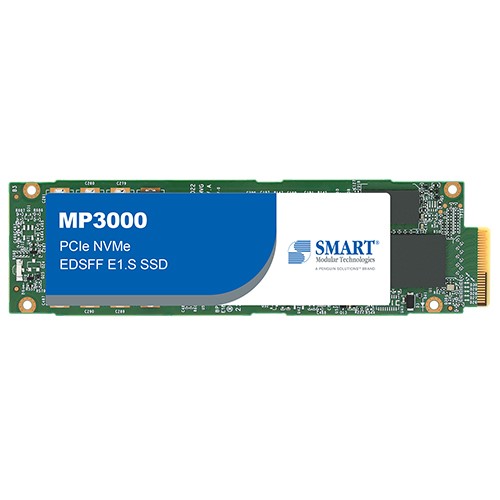

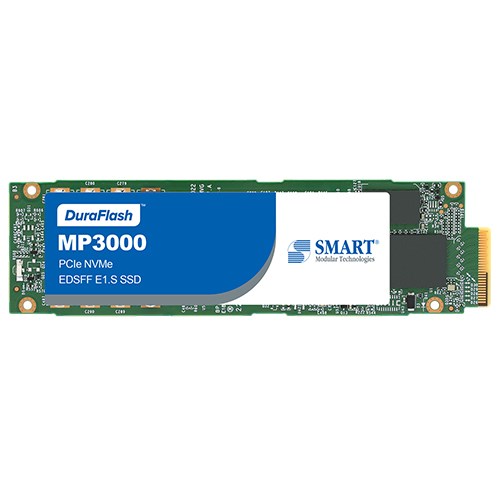

MP3000 | PCIe NVMe | EDSFF E1.S SSD

EDSFF

SMART Modular’s Enterprise and Data Center SSDs are an ideal solution for capturing, storing and analyzing very large amounts of data. The high performance, E1.S form factor and 12V operation are specifically optimized for scale-out main storage in servers. They fit vertically in 1U servers to provide improved cooling and maximum system capacity (up to 32 EDSFF SSDs in a 1U server).

SMART Modular’s EDSFF E1.S SSDs support a full range of command sets and provide the security and reliability needed by the most demanding data center applications.

Essentials
MP3000
eTLC
PCIe Gen4 x4 NVMe 1.4
Performance
Up to 3500MB/s
Up to 2000MB/s
Up to 400K IOPS
Up to 160K IOPS
240GB
480GB
960GB
1920GB
Reliability
240GB: 350TBW
480GB: 800TBW
960GB: 1700TBW
1920GB: 3500TBW
(JEDEC® Enterprise Workload)
> 2,000,000 hours
1
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
111.49mm
31.5mm
5.9mm
SRE1S1920F1N2AC11920GBC-temp (0˚C to +70˚C)
SRE1S960GF1N2AC1960GBC-temp (0˚C to +70˚C)
SRE1S480GF1N2AC1480GBC-temp (0˚C to +70˚C)
SRE1S240GF1N2AC1240GBC-temp (0˚C to +70˚C)
