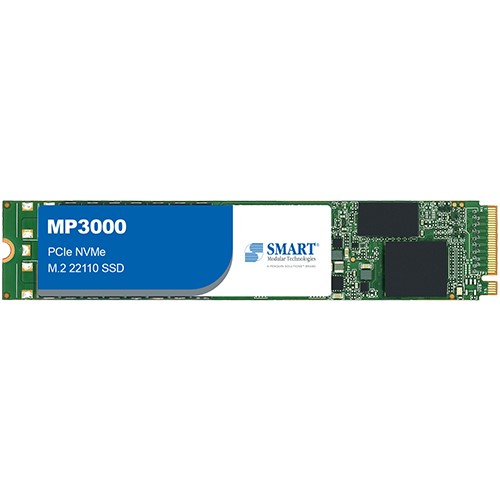

MP3000 | PCIe NVMe | M.2 22110 SSD
NVMe
SMART’s DuraFlash MP3000 PCIe NVMe M.2 22110 SSDs incorporate the latest generation 3D NAND-technology to deliver high performance with endurance up to one drive writes per day (1 DWPD) for five years. The MP3000 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability.
SMART’s MP3000 SSDs feature a PCIe Gen4 x4 interface and are compliant to NVMe 1.4 specification. The increased bandwidth offered by PCIe 4.0 improves the efficiency of performing workloads. They support TCG Opal 2.0 as standard, and are easily integrated into a host system without any BIOS modifications or additional drivers. The MP3000 products incorporate on-board error detection and correction, and static wear-leveling algorithms to provide reliable operation over the product life cycle.
- Essentials
- MP3000
- eTLC
- PCIe Gen4 x4 NVMe 1.4
- Performance
- Up to 3500MB/s
- Up to 2000MB/s
- Up to 400K IOPS
- Up to 160K IOPS
- 240GB
480GB
960GB
1920GB
- Reliability
- 240GB: 350TBW
480GB: 800TBW
960GB: 1700TBW
1920GB: 3500TBW
(JEDEC® Enterprise Workload) - > 2,000,000 hours
- 1
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 110mm
- 22mm
- 3.65mm
SRMP11920F1N2AC2 | 1920GB | C-temp (0˚C to +70˚C) |
SRMP11920F2N2AC2 | 1920GB | I-temp (-40˚C to +85˚C) |
SRMP1960GF1N2AC2 | 960GB | C-temp (0˚C to +70˚C) |
SRMP1960GF2N2AC2 | 960GB | I-temp (-40˚C to +85˚C) |
SRMP1480GF1N2AC2 | 480GB | C-temp (0˚C to +70˚C) |
SRMP1480GF2N2AC2 | 480GB | I-temp (-40˚C to +85˚C) |
SRMP1240GF1N2AC2 | 240GB | C-temp (0˚C to +70˚C) |
SRMP1240GF2N2AC2 | 240GB | I-temp (-40˚C to +85˚C) |
