CXA-8F2W
AIC (Add In Card)

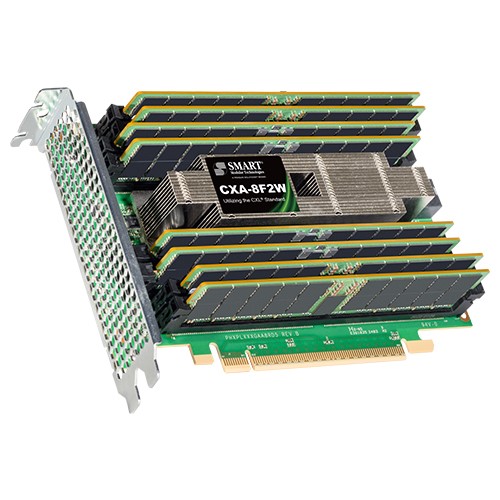

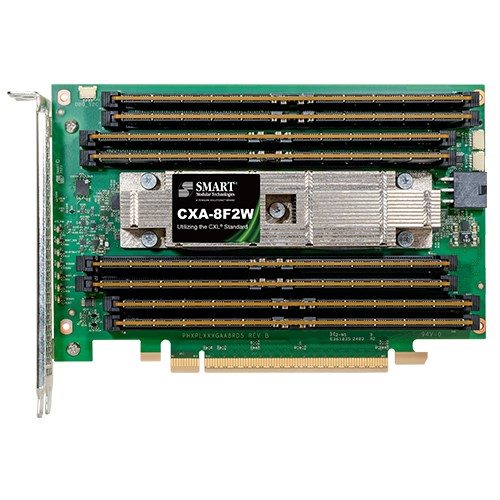

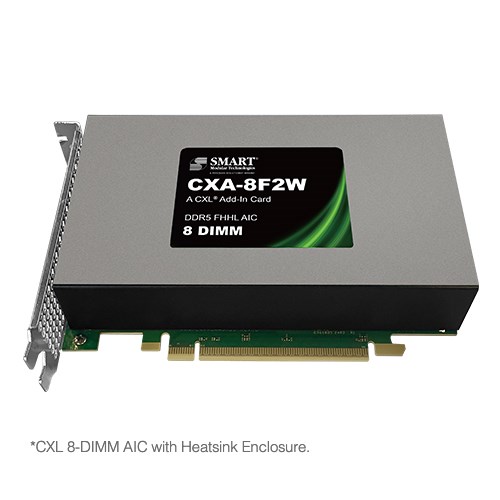

SMART’s CXA-8F2W is an 8-DIMM AIC utilizing the CXL™ standard. It’s a Type 3 PCIe Gen5 Add-In Card (AIC) consisting of eight DDR5 RDIMMs mounted on a Full Height, Half Length PCIe form factor module. It uses two x16 CXL controllers to implement two x8 CXL ports capable of a total bandwidth of 64GB/s.
Each RDIMM socket supports up to 128GB RDIMMs for a maximum memory capacity of 1TB. The CXL Controllers implement “Reliability, Availability, and Serviceability” (RAS) features, advanced analytics, as well as enhanced security features with in-band or side band (SMBus) monitoring capability.
SMART develops Type 3 (CXL.mem) memory products utilizing the CXL standard to address the industry’s need for more memory per processor core. The CXL interconnect specification allows for a significant expansion of memory form factor options in PCIe or EDSFF form factors.
● Security Features
- CXL Link-Level Integrity and Encryption (IDE)
- AES-256 Encrypted DDR Memory Interface
- Firmware Authentication, Integrity Check
● RAS Features
- Single Error Correction and Double Error Detection
- Advance EDC
- Memory Mirroring
- Rank Sparing
- Scrubbing
- On-Demand Memory Migration
- Temperature Monitoring and DRAM Throttling
- Fault Isolation, Error logging and Reporting
- Essentials
- DDR5
- AIC (Add In Card)
- 2.0
- C-temp: 0˚C to 70˚C
- Performance
- 256GB
512GB
1TB - 64.0 GBps
- 2 x (1 x 80b)
- Environmental
- Yes
- Physical
- 39.17 (W) x 167.52 (L) x 111.15 (H) mm
