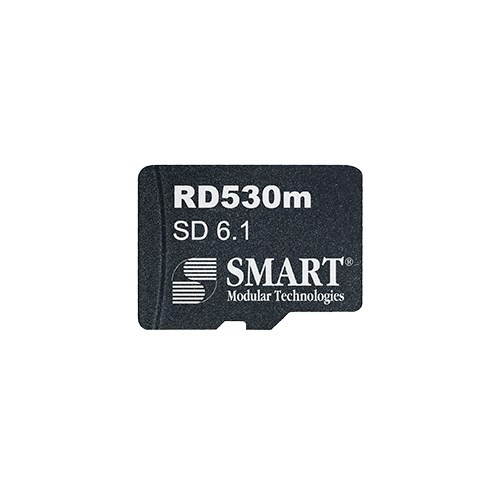

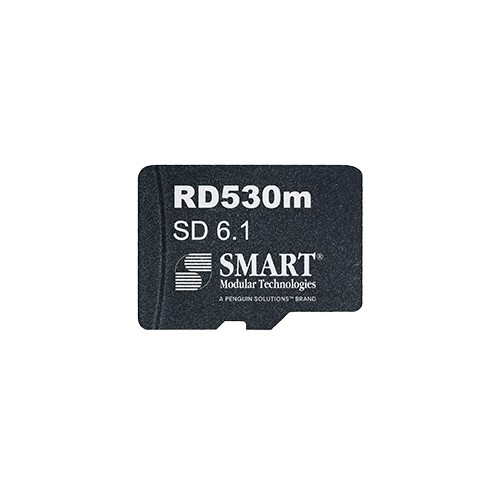

RD530m | SD 6.1 | microSD Card
microSD Cards
SMART’s DuraFlash high-capacity RD530m industrial microSD Memory Cards are fully microSD UHS-I SDR 104 compliant. The RD530m microSD Cards are offered in 3D TLC NAND Flash, available in capacities from 64GB to 256GB. They are specifically designed to meet strict industrial operating and environmental requirements.
Incorporating onboard error detection and correction algorithms, and static and dynamic wear-leveling techniques, SMART’s RD530m microSD Cards ensure years of reliable operation over a product’s life.
- Essentials
- RD530
- 3D TLC
- SD 6.1
- Performance
- Up to 100MB/s
- Up to 90MB/s
- 64GB
128GB
- Reliability
- 64GB: 175TBW
128GB: 350TBW
(JEDEC® Sequential Workload) - > 3,000,000 hours
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
- -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 15mm
- 11mm
- 1mm
