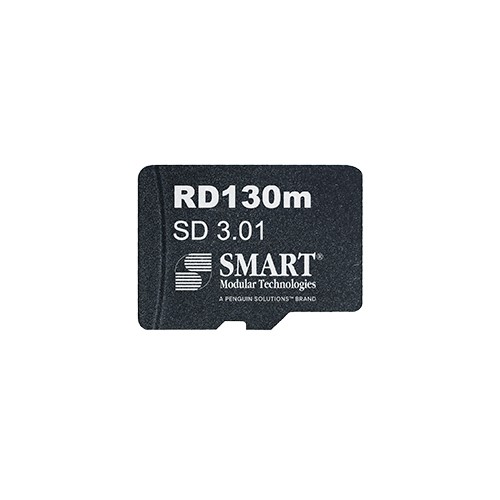

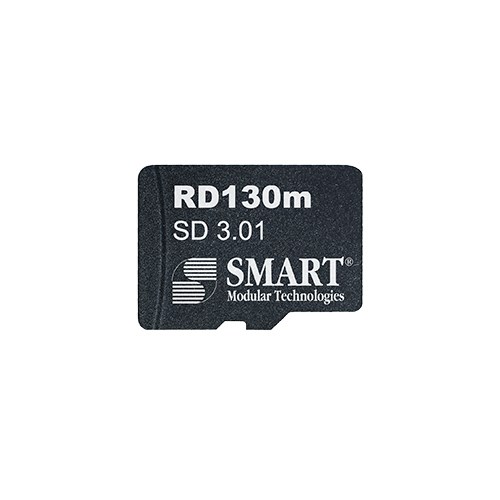

RD130m | SD 3.01 | microSD Card

microSD Cards

SMART’s RD130m SD 3.01 microSD Cards are fully SD compliant. Offered in commercial and industrial temperature versions based on 32nm and 24nm SLC Flash technologies, the RD130m SD 3.01 microSD Cards are specifically designed to meet strict industrial operating and environmental requirements.

SMART Modular’s RD130m SD 3.01 microSD Cards comply with SD v3.01 standard with performance up to 68MB/s read and 50MB/s write. Incorporating onboard error detection and correction algorithms, and static and dynamic Wear-Leveling techniques, SMART’s microSD card products ensure years of reliable operation over a product’s life.

Essentials
RD130m
SLC
SD 3.01
Performance
Up to 68MB/s
Up to 50MB/s
1GB
2GB
4GB
Reliability
1GB: 58TBW
2GB: 117TBW
4GB: 234TBW
(Sequential Workload)
> 3,000,000 hours
Environmental
500G/2ms. 6 faces, 5 times/face
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
E-temp: -25℃ to +85℃
I-temp: -40℃ to +85℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
15mm
11mm
1mm
SS9UD004GPHE8SI324GBI Temp (-40˚C to +85˚C)
SS9UD004GPHE8SE324GBE Temp (-25˚C to +85˚C)
SS9UD002GPHE8SI322GBI Temp (-40˚C to +85˚C)
SS9UD002GPHE8SE322GBE Temp (-25˚C to +85˚C)
SS9UD001GPHE8SI321GBI Temp (-40˚C to +85˚C)
SS9UD001GPHE8SE321GBE Temp (-25˚C to +85˚C)
