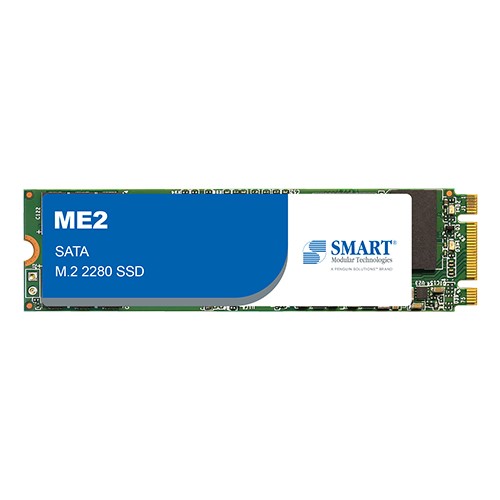

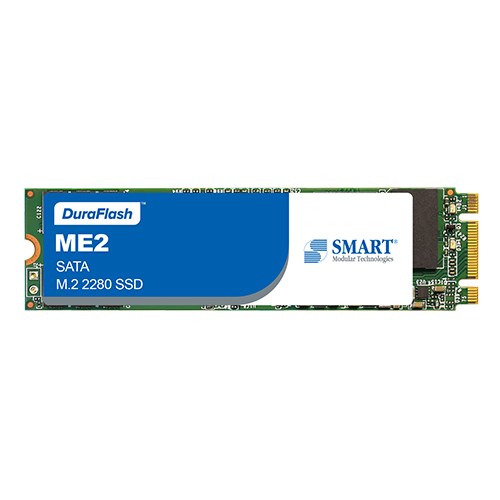

ME2 | SATA | M.2 2280 SSD
SATA
SMART’s DuraFlash ME2 SATA M.2 2280 SSDs incorporate the latest generation 3D NAND-technology and SMART Modular’s proprietary NVMSentry™ firmware to deliver high performance SSD products with endurance up to one drive writes per day (1 DWPD) for five years. The new ME2 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability. Further optimization of the NVMSentry firmware also yields enhancements in read and write consistency over wide ranges of application workloads.
SMART’s ME2 SATA M.2 2280 SSDs are available in both industrial and commercial temperature grades and have versions that implement SMART’s SafeDATA™ power-loss, data-protection technology for graceful handling of power fluctuations and sudden power loss events.
- Essentials
- ME2
- eTLC
- SATA 3.0 6Gb/s
- Performance
- Up to 540MB/s
- Up to 450MB/s
- Up to 90K IOPS
- Up to 70K IOPS
- 240GB
480GB
960GB
1920GB
- Reliability
- 240GB: 513TBW
480GB: 902TBW
960GB: 1671TBW
1920GB: 3330TBW
(JEDEC® Enterprise Workload) - > 2,000,000 hours
- 1
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 80mm
- 22mm
- 3.65mm
| SRM281920FCM2AC2 | 1920GB | C-Temp |
| SRM281920FIM2AC2 | 1920GB | I-Temp |
| SRM28960GFCM2AC2 | 960GB | C-Temp |
| SRM28960GFIM2AC2 | 960GB | I-Temp |
| SRM28480GFCM2AC2 | 480GB | C-Temp |
| SRM28480GFIM2AC2 | 480GB | I-Temp |
| SRM28240GFCM2AC2 | 240GB | C-Temp |
| SRM28240GFIM2AC2 | 240GB | I-Temp |
| SRM281920F1M2AC2 | 1920GB | C-Temp / SafeDATA (pFail) |
| SRM281920F2M2AC2 | 1920GB | I-Temp / SafeDATA (pFail) |
| SRM28960GF1M2AC2 | 960GB | C-Temp / SafeDATA (pFail) |
| SRM28960GF2M2AC2 | 960GB | I-Temp / SafeDATA (pFail) |
| SRM28480GF1M2AC2 | 480GB | C-Temp / SafeDATA (pFail) |
| SRM28480GF2M2AC2 | 480GB | I-Temp / SafeDATA (pFail) |
| SRM28240GF1M2AC2 | 240GB | C-Temp / SafeDATA (pFail) |
| SRM28240GF2M2AC2 | 240GB | I-Temp / SafeDATA (pFail) |
