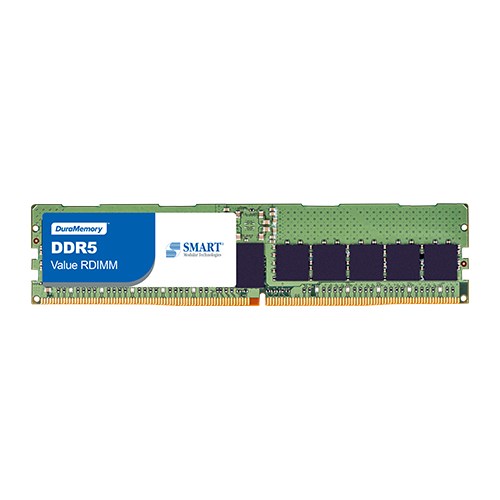

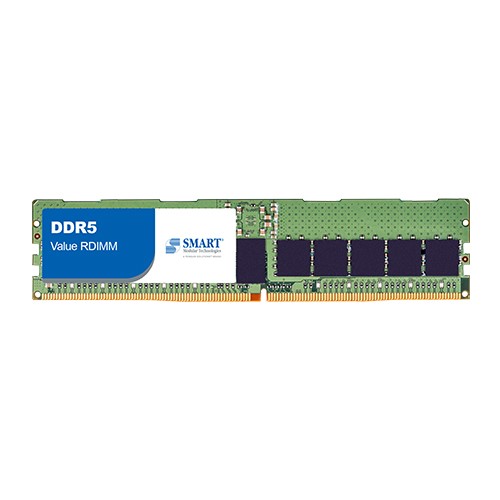

DDR5 Value RDIMM
DDR5 Value
SMART's DDR5 Value RDIMMs are designed to meet increasing needs for efficient performance in a wide range of applications including cloud computing, and data center processing. The DDR5 memory provides developers with twice the performance (4800 to 6400 MT/s) and improved power efficiency in comparison to DDR4 by using an on-DIMM 12V voltage regulator (PMIC) and 1.1 I/O Voltage.
DDR5 also improves scaling performance without degrading channel efficiency at higher speeds. This increased performance is achieved by doubling the burst length to BL16 and bank-count to 32 from 16. For increased reliability and efficiency, a DDR5 DIMM utilizes two 40-bit fully independent sub-channels on the same module. DDR5 memory modules have a maximum die density of 64Gb and hence are capable of having a much higher DIMM storage capacity.
- Essentials
- DDR5
- RDIMM
- C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C - 2Gx8
3Gx8
4Gx4
6Gx4 - 2Gb
3Gb
4Gb
6Gb
8Gb
12Gb
16Gb - x80
- 1.1V
- 288-Pin
- Performance
- 16GB
24GB
32GB
48GB
64GB
96GB
128GB - 4800MT/s
5600MT/s - PC5-38400
PC5-44800 - CL = 40
CL = 46
- Environmental
- Yes
- Physical
- 31.25mm
SRAG8RD5846-SB | 128GB | C-temp (0˚C to +70˚C) |
STHG8RD5645-HM | 96GB | C-temp (0˚C to +70˚C) |
SR8G8RD5445-SB | 64GB | C-temp (0˚C to +70˚C) |
SRB8G8RD5445-SB | 64GB | C-temp (0˚C to +70˚C) |
ST8G8RD5445-HA | 64GB | C-temp (0˚C to +70˚C) |
SRI8G8RD5445-SB | 64GB | I-temp (-40˚C to +85˚C) |
ST6G8RD5645-HM | 48GB | C-temp (0˚C to +70˚C) |
SR4G8RD5285-SB | 32GB | C-temp (0˚C to +70˚C) |
SR4G8RD5445-SB | 32GB | C-temp (0˚C to +70˚C) |
SRB4G8RD5445-SB | 32GB | C-temp (0˚C to +70˚C) |
ST4G8RD5288-HA | 32GB | C-temp (0˚C to +70˚C) |
SRI4G8RD5285-SB | 32GB | I-temp (-40˚C to +85˚C) |
SRI4G8RD5445-SB | 32GB | I-temp (-40˚C to +85˚C) |
ST3G8RD5385-HM | 24GB | C-temp (0˚C to +70˚C) |
SR2G8RD5285-SB | 16GB | C-temp (0˚C to +70˚C) |
SRI2G8RD5285-SB | 16GB | I-temp (-40˚C to +85˚C) |
