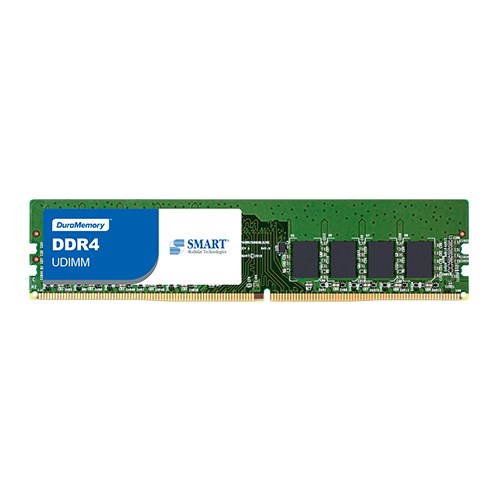

DDR4 UDIMM

DDR4

SMART's DuraMemory™ UDIMMs (unbuffered DIMMs) are used in a wide variety of telecom, networking, computing and media applications which have one or two DIMM sockets per CPU. There is no need for registered DIMMs associated with heavier memory bus loading.

Industrial Temperature (-40°C to +85°C)

Anti-Sulfur Resistor

Conformal Coating

Underfill

IIoT

Surveillance

Networking

Telecommunications

Industrial

Medical

Essentials: TechnologyDDR4; Module TypeUDIMM; TemperatureC-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C; Component Configuration512Mx8
512Mx16
2Gx8; Depth512Mb
2Gb
4Gb; Widthx64; Voltage1.2V; Pin Count288-Pin

Performance: Capacity4GB
16GB
32GB; Data Rate2666MT/s
3200MT/s; SpeedPC4-21300
PC4-25600; CLCL = 19
CL = 22

Environmental: RoHSYes

Physical: Height31.25mm


ST4096UD420825MF	32GB	C-temp (0˚C to +70˚C)
STT4096UD420825MF	32GB	I-temp (-40℃ to 85℃)
ST2046UD420825SC	16GB	C-temp (0˚C to +70˚C)
ST5126UD451893SF	4GB	C-temp (0˚C to +70˚C)
ST5126UD451693SC	4GB	C-temp (0˚C to +70˚C)
STI5126UD451893SF	4GB	I-temp (-40℃ to 85℃)
