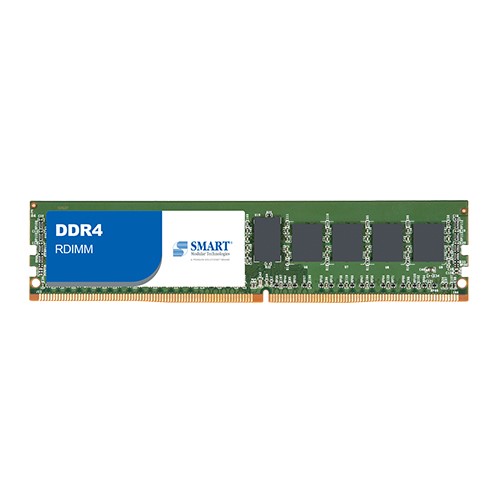

DDR4 RDIMM
DDR4
SMART's DuraMemory™ RDIMMs use a hardware register that buffers the control signals to the modules. RDIMMs handle heavier electrical loads placed on high-speed, high-density memory modules better than the unbuffered DIMMs. When three or more DIMMs are used per memory channel, RDIMMs typically provide greater performance. SMART offers a wide variety of configurations, densities, and speeds to support diverse application requirements. (Enterprise grade option)
- Essentials
- DDR4
- RDIMM
- C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C - 512Mx8
1Gx8
2Gx4
2Gx8
4Gx4 - 512Mb
1Gb
2Gb
4Gb
8Gb - x72
- 1.2V
- 288-Pin
- Performance
- 4GB
8GB
16GB
32GB
64GB - 2666MT/s
2933MT/s
3200MT/s - PC4-21300
PC4-23400
PC4-25600 - CL = 19
CL = 21
CL = 22
- Environmental
- Yes
- Physical
- 24.40mm
31.25mm
| ST8197RD440425HC | 64GB | C-temp (0˚C to +70˚C) |
| ST8197RD420893MF | 64GB | C-temp (0˚C to +70˚C) |
| ST4097RD420825SC | 32GB | C-temp (0˚C to +70˚C) |
| ST4097RD420493SC | 32GB | C-temp (0˚C to +70˚C) |
| STI4097RD420493SC | 32GB | I Temp (-40˚C to +85˚C) |
| STI4097RD420825MF | 32GB | I Temp (-40˚C to +85˚C) |
| STT4097RD420825MF | 32GB | I Temp (-40˚C to +85˚C) |
| ST2047RD420825MF | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD410825SC | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD420825HC | 16GB | C-temp (0˚C to +70˚C) |
| STI2047RD410893SC | 16GB | I Temp (-40˚C to +85˚C) |
| ST2047RD420493SC | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD410893SC | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD410814SC | 16GB | C-temp (0˚C to +70˚C) |
| ST1027RD410825SC | 8GB | C-temp (0˚C to +70˚C) |
| ST1027RD451893SF | 8GB | C-temp (0˚C to +70˚C) |
| ST1027RD410893SC | 8GB | C-temp (0˚C to +70˚C) |
| ST1027RD410825SG | 8GB | C-temp (0˚C to +70˚C) |
| STI1027RD451893SF | 8GB | I-temp (-40℃ to 85℃) |
| STI1027RD410893SC | 8GB | I-temp (-40℃ to 85℃) |
| ST5127RD451893SF | 4GB | C-temp (0˚C to +70˚C) |
