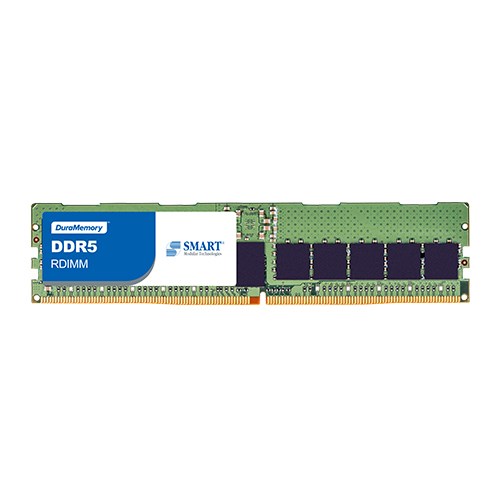

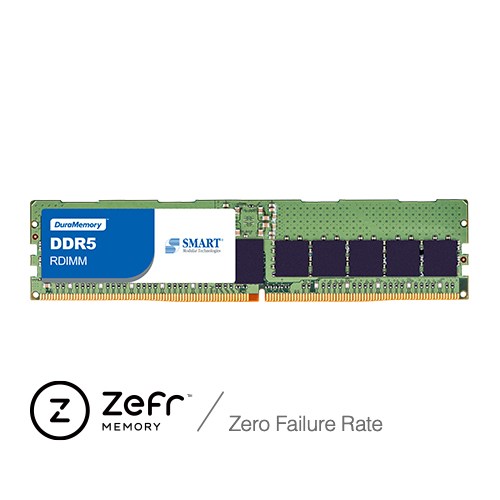

DDR5 RDIMM
DDR5
SMART's DDR5 RDIMMs are designed to meet increasing needs for efficient performance in a wide range of applications including cloud computing, and data center processing. The DDR5 memory provides developers with twice the performance (4800 to 6400 MT/s) and improved power efficiency in comparison to DDR4 by using an on-DIMM 12V voltage regulator (PMIC) and 1.1 I/O Voltage.
DDR5 also improves scaling performance without degrading channel efficiency at higher speeds. This increased performance is achieved by doubling the burst length to BL16 and bank-count to 32 from 16. For increased reliability and efficiency, a DDR5 DIMM utilizes two 40-bit fully independent sub-channels on the same module. DDR5 memory modules have a maximum die density of 64Gb and hence are capable of having a much higher DIMM storage capacity.
- Essentials
- DDR5
- RDIMM
- C-temp: 0˚C to 70˚C
- 2Gx8
- 4Gb
- x80
- 1.1V
- 288-Pin
- Performance
- 32GB
- 4800MT/s
- PC5-38400
PC5-44800 - CL = 40
- Environmental
- Yes
- Physical
- 31.25mm
