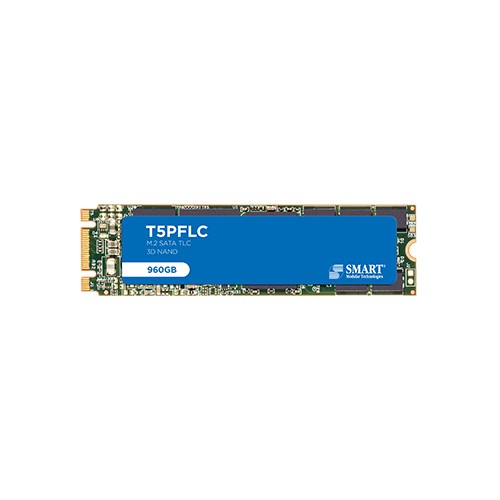

T5PFLC M.2 2280 SATA SSD

T Series

SMART Modular Technologies' T5PFLC M.2 2280 SATA solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for commercial, industrial and other applications requiring durable and secure storage. The T5PFLC also comes equipped with FIPS 140-2 encryption capabilities.

Powered by a flexible flash controller, T5PFLC SSDs provide sustained read/write performance to meet the needs of high throughput database applications, as well as transactional and boot and load applications.

T5PFLC SSDs offer up to 2TB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs).

Essentials
T5PF
3D TLC
SATA 3.0 6Gb/s
Performance
Up to 500MB/s
Up to 470MB/s
Up to 50K IOPS
Up to 48K IOPS
240GB
480GB
960GB
Reliability
Up to 2,800 TDW
> 2,000,000 hours
Environmental
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
16.4 g rms 10-2000 Hz random, 3-axes
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-55℃ to +95℃
5% to 95% non-condensing
Physical
80mm
22mm
2.64mm
HRJA3F0960HC001960GBC-temp (0˚C to +70˚C)
HRJA3F0960HI001960GBI-Temp (-40˚C to +85˚C)
HRJA3F0480HC001480GBC-temp (0˚C to +70˚C)
HRJA3F0480HI001480GBI-Temp (-40˚C to +85˚C)
HRJA3F0240HC001240GBC-temp (0˚C to +70˚C)
HRJA3F0240HI001240GBI-Temp (-40˚C to +85˚C)
