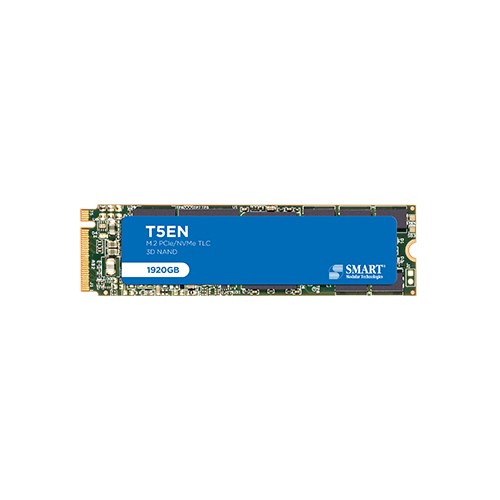

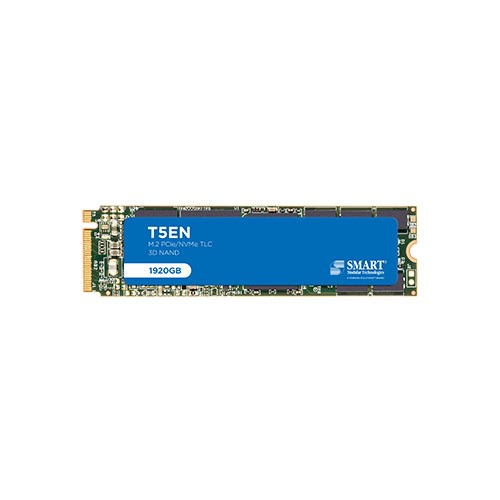

T5EN TLC M.2 2280 PCIe NVMe SSD

T Series

SMART Modular Technologies' T5EN M.2 2280 PCIe NVMe Gen3 x4 solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.

Powered by a flexible, custom flash controller, T5EN SSDs provide sustained read/write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T5EN SSDs are also well suited for high reliability telemetry, surveillance, and mission critical applications.

T5EN M.2 SSDs offer up to 3840GB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs). Conforming to SMART’s “true” industrial grade standards, they are superior to typical SSDs and HDDs in terms of ruggedness and environmental resilience.

Specifications
Essentials
T5EN
3D TLC
PCIe Gen3 x4
Performance
Up to 3200MB/s
Up to 1600MB/s
Up to 310K IOPS
Up to 245K IOPS
480GB
960GB
1920GB
3840GB
Reliability
Up to 1,000 TDW
> 2,000,000 hours
Environmental
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
16.4 g rms 10-2000 Hz random, 3-axes
I-temp: -40℃ to +85℃
-55℃ to +95℃
5% to 95% non-condensing
Physical
80mm
22mm
3.6mm
Ordering Information
Part NumberCapacityNote
HRCN3P3840ME0013840GBI-Temp (-40˚C to +85˚C)
HRCN3P1920HI0011920GBI-Temp (-40˚C to +85˚C)
HRCN3P0960HI001960GBI-Temp (-40˚C to +85˚C)
HRCN3P0480HI001480GBI-Temp (-40˚C to +85˚C)
