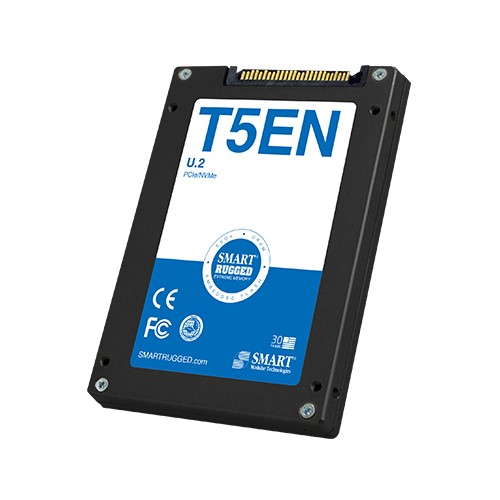

T5EN pSLC U.2 PCIe NVMe SSD

T Series

SMART Modular Technologies' T5EN U.2 PCIe NVMe Gen3 x4 solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.

Powered by a flexible, custom flash controller, T5EN SSDs provide sustained read/write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T5EN SSDs are also well suited for high reliability telemetry, surveillance, and mission critical applications.

T5EN U.2 SSDs offer up to 7680GB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs). Contains pFail protection.

Specifications
Essentials
T5EN
pSLC
PCIe Gen3 x4
Performance
Up to 3200MB/s
Up to 1600MB/s
Up to 310K IOPS
Up to 245K IOPS
160GB
320GB
640GB
1280GB
2560GB
Reliability
Up to 10,000 TDW
> 2,000,000 hours
Environmental
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
16.4 g rms 10-2000 Hz random, 3-axes
I-temp: -40℃ to +85℃
-55℃ to +95℃
5% to 95% non-condensing
Physical
100mm
69.85mm
7mm
Ordering Information
Part NumberCapacityNote
HRCN7P2560PE0012560GBI-Temp (-40˚C to +85˚C)
HRCN7P1280JI0011280GBI-Temp (-40˚C to +85˚C)
HRCN7P0640JI001640GBI-Temp (-40˚C to +85˚C)
HRCN7P0320JI001320GBI-Temp (-40˚C to +85˚C)
HRCN7P0160JI001160GBI-Temp (-40˚C to +85˚C)
