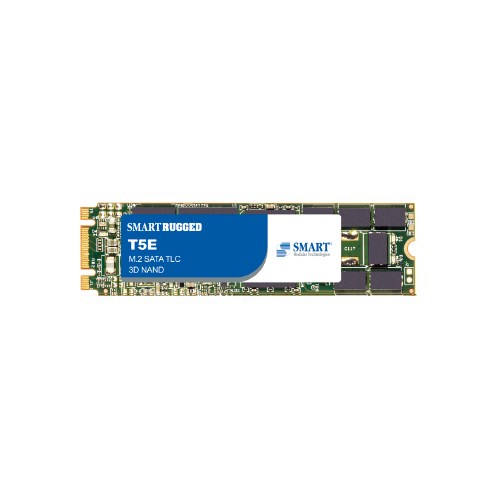

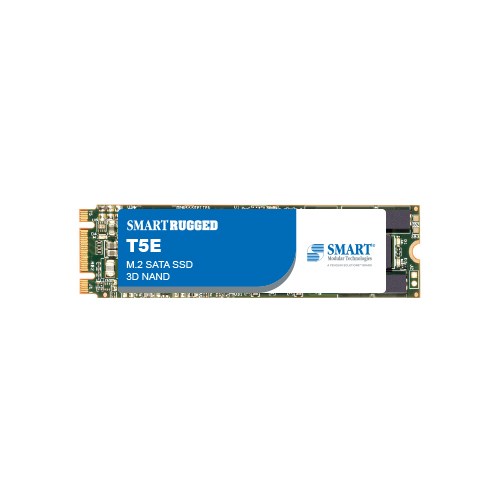

T5E M.2 2280 SATA SSD

T Series

SMART’s RUGGED T5E M.2 2280 SATA solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage. T5E M.2 2280 SATA SSDs provide sustained read/write performance to meet the needs of high throughput applications, such as flight data recorders and sensor data capture. They are also well suited for high-reliability telemetry, surveillance, and mission-critical applications.

Conforming to SMART’s “true” industrial grade standards, T5E M.2 2280 SATA SSDs are superior to typical SSDs and HDDs in terms of ruggedness, vibration and shock resistance, and environmental resilience.

Essentials
T5E
3D TLC
SATA 3.0 6Gb/s
Performance
Up to 520MB/s
Up to 500MB/s
Up to 81K IOPS
Up to 70K IOPS
480GB
960GB
1920GB
3840GB
Reliability
Up to 2,100 TDW
> 2,000,000 hours
Environmental
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
16.4 g rms 10-2000 Hz random, 3-axes
I-temp: -40℃ to +85℃
-55℃ to +95℃
5% to 95% non-condensing
Physical
80mm
22mm
3.6mm
HRCA3P0240HIS013840GBI Temp (-40˚C to +85˚C)
HRCA3P0480HIS011920GBI Temp (-40˚C to +85˚C)
HRCA3P0960HIS01960GBI Temp (-40˚C to +85˚C)
HRCA3P1920HIS01480GBI Temp (-40˚C to +85˚C)
