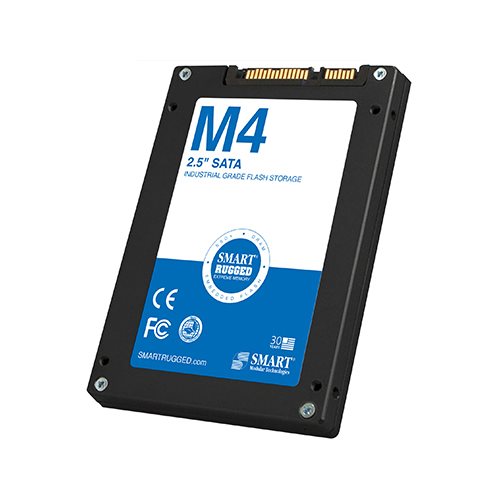

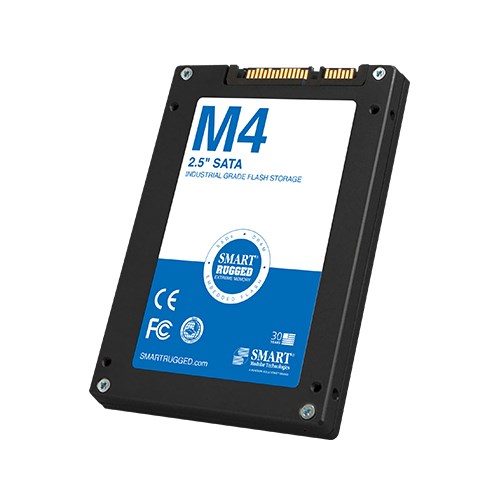

M4 2.5" SATA SSD
M Series
SMART's RUGGED SSD M4 products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, M4 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.
The SMART M4 SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.
- Essentials
- M4
- MLC
- SATA 3.0 6Gb/s
- Performance
- Up to 500MB/s
- Up to 260MB/s
- Up to 60K IOPS
- Up to 55K IOPS
- 240GB
480GB
960GB
- Reliability
- Up to 1,200 TDW
- > 3,000,000 hours
- Environmental
- 50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
- 16.4 g rms 10-2000 Hz random, 3-axes
- I-temp: -40℃ to +85℃
- -55℃ to +95℃
- 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
| HRAA2S0960EI001 | 960GB | I Temp (-40˚C to +85˚C) / Secure |
| HRAA2S0480EI001 | 480GB | I Temp (-40˚C to +85˚C) / Secure |
| HRAA2S0240EI001 | 240GB | I Temp (-40˚C to +85˚C) / Secure |
| HRAA2S0960EICC1 | 960GB | I Temp (-40˚C to +85˚C) / Coating / Secure |
| HRAA2S0480EICC1 | 480GB | I Temp (-40˚C to +85˚C) / Coating / Secure |
| HRAA2S0240EICC1 | 240GB | I Temp (-40˚C to +85˚C) / Coating / Secure |
