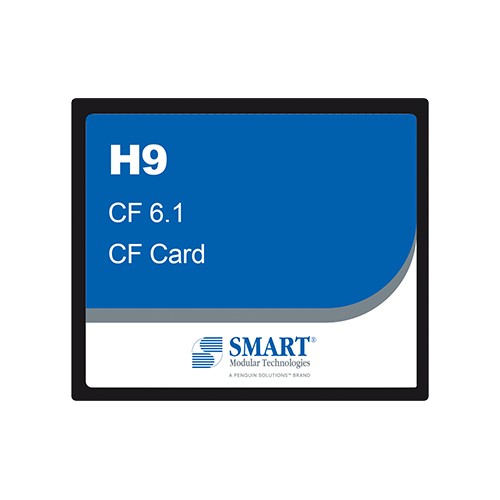

H9 | CF 6.1 | CF Card
CF Cards
SMART’s DuraFlash™ H9 CF 6.1 CF Cards are RoHS-6 compliant and support Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.). Offered in commercial and industrial temp versions in capacities from 64MB to 64GB. SMART's H9 CF 6.1 CF Cards offer reliable high performance in an industry standard form factor.
Designed using Single-Level Cell (SLC), the CF Card’s SLC NAND Flash technology is used for the enhanced data integrity and life time expectation in critical embedded applications. They also offer advanced static and dynamic Wear-Leveling algorithm for extending product lifespan in OEM applications. Applications include gaming, communications, defense, industrial control equipment, networking, and printers.
- Essentials
- H9
- SLC
- CF 6.1
- Performance
- Up to 103MB/s
- Up to 73MB/s
- 64MB
128MB
256MB
512MB
1GB
2GB
4GB
8GB
16GB
32GB
64GB
- Reliability
- 64MB: 2.37TBW
256MB: 0.43TBW
512MB: 0.75TBW
1GB: 2.79TBW
2GB: 12.92TBW
4GB: 25.67TBW
8GB: 52.70TBW
16GB: 99.48TBW
32GB: 190.63TBW
64GB: 342.32TBW
(JEDEC® Enterprise Workload) - > 7,000,000 hours
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 15G Peak-to-Peak
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 36.4mm
- 42.8mm
- 3.3mm
| SP9FD64GH9UES01 | 64GB | C-Temp (0˚C to +70˚C) |
| SP9FD64GH9UEIS01 | 64GB | I-temp (-40℃ to 85℃) |
| SP9FD32GH9UDS01 | 32GB | C-Temp (0˚C to +70˚C) |
| SP9FD32GH9UDIS01 | 32GB | I-temp (-40℃ to 85℃) |
| SP9FD16GH9UCS01 | 16GB | C-Temp (0˚C to +70˚C) |
| SP9FD16GH9UCIS01 | 16GB | I-temp (-40℃ to 85℃) |
| SP9FD08GH9UBS01 | 8GB | C-Temp (0˚C to +70˚C) |
| SP9FD08GH9UBIS01 | 8GB | I-temp (-40℃ to 85℃) |
| SP9FD04GH9UAS01 | 4GB | C-Temp (0˚C to +70˚C) |
| SP9FD04GH9UAIS01 | 4GB | I-temp (-40℃ to 85℃) |
| SP9FD02GH9U8S01 | 2GB | C-Temp (0˚C to +70˚C) |
| SP9FD02GH9U8IS01 | 2GB | I-temp (-40℃ to 85℃) |
| SP9FD01GH9U4S01 | 1GB | C-Temp (0˚C to +70˚C) |
| SP9FD01GH9U4IS01 | 1GB | I-temp (-40℃ to 85℃) |
| SP9FD512H9U2S01 | 512MB | C-Temp (0˚C to +70˚C) |
| SP9FD512H9U2IS01 | 512MB | I-temp (-40℃ to 85℃) |
| SP9FD256H9U1S01 | 256MB | C-Temp (0˚C to +70˚C) |
| SP9FD256H9U1IS01 | 256MB | I-temp (-40℃ to 85℃) |
| SP9FD128H9U1S01 | 128MB | C-Temp (0˚C to +70˚C) |
| SP9FD128H9U1IS01 | 128MB | I-temp (-40℃ to 85℃) |
| SP9FD064H9U1S01 | 64MB | C-Temp (0˚C to +70˚C) |
| SP9FD064H9U1IS01 | 64MB | I-temp (-40℃ to 85℃) |
